high welding and technological properties, low spatter, stable arc burning, easy slag removal, and excellent seam quality
excellent corrosion resistance in oxidizing environments and high resistance to intercrystalline corrosion
Special properties
type 302, 304 and 308 stainless steels
they are used for welding in all spatial positions, except vertical down one
welding is recommended to be performed at the highest possible speed without transverse oscillations of the electrode
Monolith M-308L electrodes are designed for welding of austenitic stainless steels such as 302, 304 and 308, etc. in the operating temperature range not exceeding 450°C (842°F). Main applications are found in equipment, tanks, cisterns and stainless steel pipes for use in the food, textile, oil refining, paper, and pharmaceutical industries, as well as in the automotive and general engineering industries.

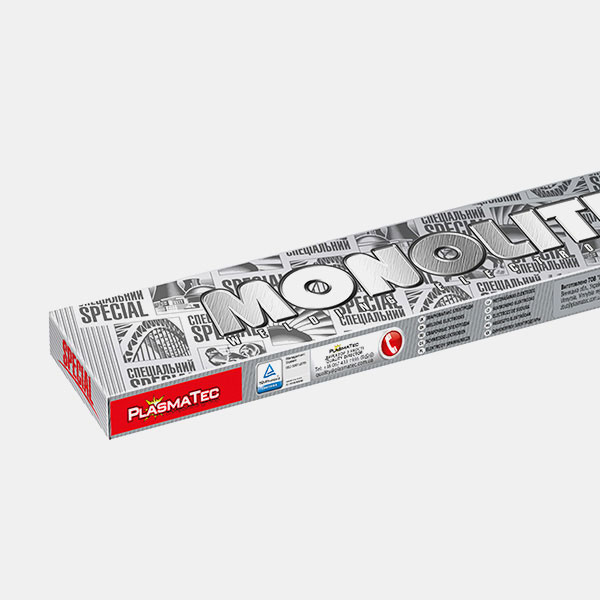

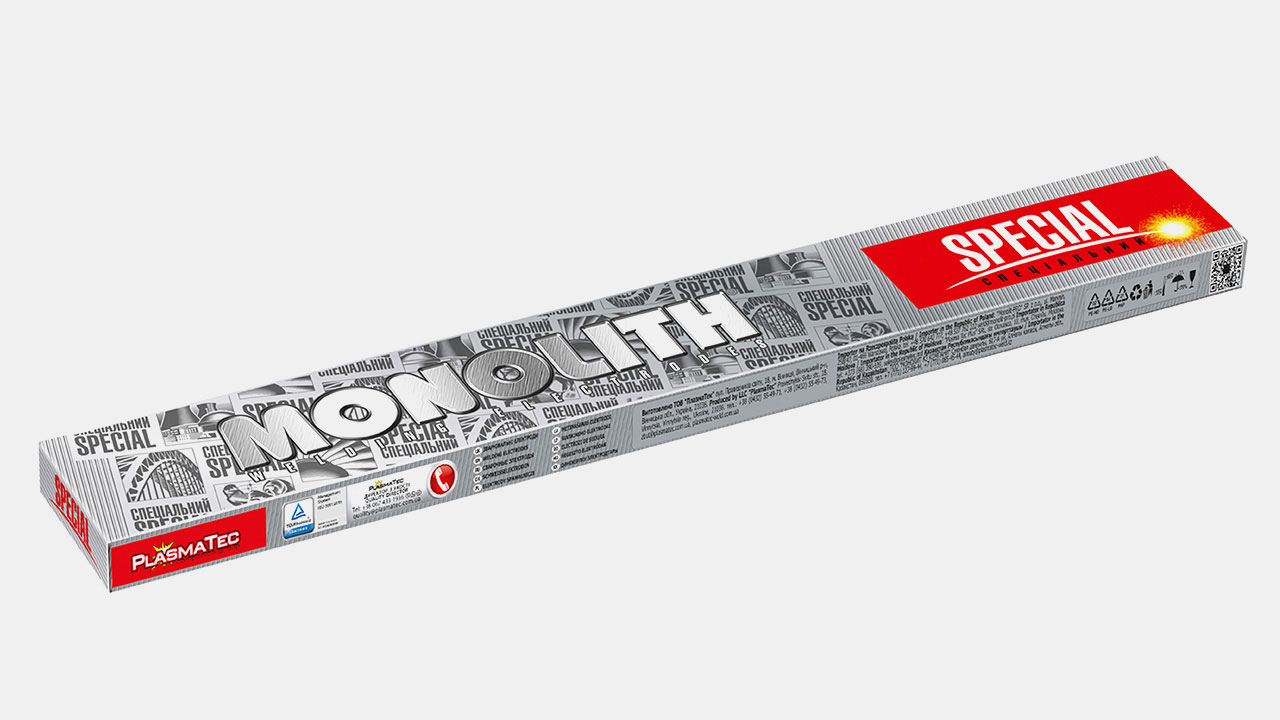

Monolith 308L-16 Ø2.5 (3/32); Ø 3.0 (1/8); Ø 3.2 (1/8) mm (in) are packed into a mini-tube of 3 pcs.
1 kg (2.2 lb) cardboard pack
20 packs per 20 kg (44 lb) cardboard box
50 cardboard boxes per 1 pallet
1000 kg (2200 lb) per 1 pallet
Electrodes MONOLITH RC are differed from similar products of other manufacturers by a value and intensity of welding aerosol evolution and manganese formation during the welding process. This was achieved by selecting the high-quality raw materials and high-level control of technological processes in electrodes manufacture. The E.O. Paton Electric Welding Institute of the NAS Ukraine and Institution of Medicine Labour of the AMS Ukraine confirmed that manganese precipitation was reduced for more than 30%, the evolution of harmful elements in welding aerosol was reduced for more than 28%.
Electrodes MONOLITH RC are characterized by an easy primary and secondary arc exciting, soft and stable arc burning, provide low spatter loss, uniform melting of the coating, excellent weld metal formation, easy slag crust removal.
Electrodes allow welding at the lowest currents. For the small-diameter electrodes, the welding can be performed from power sources, connected to conventional mains.
Easy use of electrodes gives an opportunity to perform welding by a beginning welder.
Welding in hard-to-reach places. Feasibility of electrode bending without the coating damage.
It is possible to perform welding on oxidized, greased and painted surfaces.
