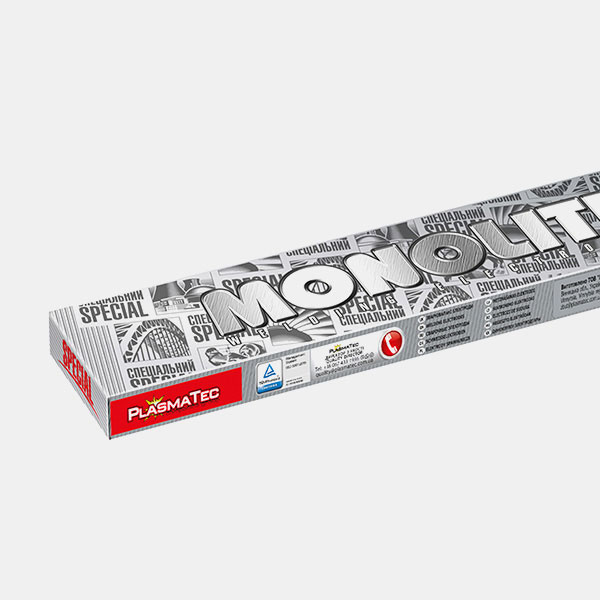

Welding electrodes Monolith 7016-1

AWS A5.1: E7016-1 H8
CSA W48:E4916
EN ISO 2560-A-E 42 5 B 2 2 H10
Terms of use

Welding should be carried out with direct current of reverse polarity (+) on the electrode, without preheating and subsequent heat treatment only on a short arc length along the cleaned edges.

Special properties
  • are characterized by high resistance of the seam metal to pores formation during arc extension, as well as by root seam welding with large gap of heavy wall pipes
  • short-arc welding with prior cleaning of edges is recommended
These electrodes are designed for welding of boiler heating surfaces elements, as well as root welding, joint welding of heavy wall pipelines made of carbon and low-alloy silicon-manganese steels with a tensile strength of at least 490 (70) MPa (ksi), operating at temperatures of up to 400°C (752°F).
Package Weight
First select diameter
Packaging data
Diameter, mm (in)Length, mm (in)Number of electrodes in a pack, pcs.Weight of the pack, kg (lb)
2,5 (3/32)300 (11,8)59 – 611 (2,2)
3,2 (1/8)350 (13,8)32 – 331 (2,2)
4,0 (5/32)450 (17,7)16 – 171 (2,2)
1 kg (2.2 lb) cardboard pack
20 packs per 20 kg (44 lb) cardboard box
50 cardboard boxes per 1 pallet
1000 kg (2200 lb) per 1 pallet



Coating type
basic
CHEMICAL COMPOSITION OF DEPOSITED METAL, %
According to AWS A5.1 / Typical Results
C
Carbon
0.09
Mn
Manganese
1.27
Si
Silicon
0.21
P
Phosphorus
0.034
S
Sulfur
0.005
WEDGE METAL MECHANICAL PROPERTIES
According to AWS A5.1 / Typical Results
  • Tensile strength, MPa 555 (80)
  • Yield point, MPa 428 (62)
  • Relative elongation, % 25
Baking before welding
  • permissible moisture content in the coating before use is not more than 0.5%
  • in case of electrode coating wetting above the norm - dry for 60 minutes at 400±10 °С (752±50 °F)
Welding modes
Welding current strength, A for electrodes with a diameter of, mm (in)
2.5 (3/32)3.2 (1/8)4.0 (5/32)
70 – 10090 – 130130 – 180

Welding Current: DC+. Arc voltage of 20 – 25 V

Position of seams during welding
PA
PB
PC
PF
PE
PD
