Welding electrodes HS-Fe6

EN 14700: E Z Fe6
Terms of use
  • it is recommended to hold the electrode vertically to the part
  • welding should be carried out with a very short arc and as little current as possible to prevent mixing with the base metal
  • to achieve maximum hardness on low-carbon steels, it is necessary to apply at least 3 layers
Special properties
  • deposited metal can be tempered at a temperature of 840-860°C (1544-1580°F), followed by quenching to a temperature of 950-1000°C (1742-1832°F), and cooling in oil or in air
  • only abrasive working of deposited metal
  • abrasive wear resistance is very good, resistance to shock loads and corrosion resistance is satisfactory, heat resistance is good
HS-Fe6 electrodes are designed for the deposition of strengthening layers operating in conditions of intensive abrasive wear in combination with moderate shock loads. Electrodes are used for welding agricultural tools operating in conditions of moderate humidity, wood processing tools, loading machines, mixers, etc.
Package Weight
First select diameter
Packaging data
Diameter, mm (in)Length, mm (in)Number of electrodes in a pack, pcs.Weight of the pack, kg (lb)
3,0 (1/8)350 (13,8)30 – 321 (2.2)
4,0 (5/32)450 (17,7)141 (2.2)

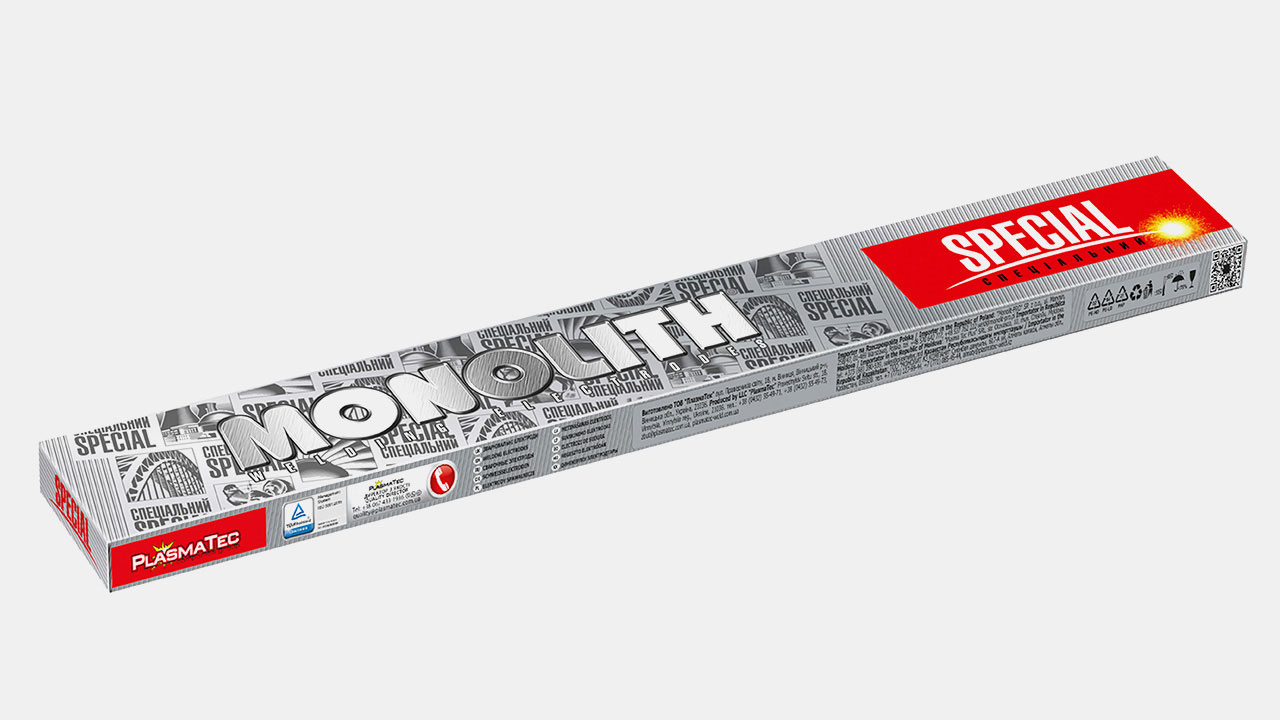

1 kg (2.2 lb) cardboard pack
20 packs per 20 kg (44 lb) cardboard box
50 cardboard boxes per 1 pallet
1000 kg (2200 lb) per 1 pallet
Package Weight
First select diameter
Coating type
basic rutile
CHEMICAL COMPOSITION OF DEPOSITED METAL, %
According to AWS A5.1 / Typical Results
C
Carbon
1.2
Mn
Manganese
0.93
P
Phosphorus
0.039
S
Sulfur
0.013
Cr
Chromium
10.0
Baking before welding
  • the permissible moisture content in the coating before use is not more than 0.4 %;
  • if the electrode coating is moistened above normal, dry for 60 minutes at 250±20°С (482±68°F).
Welding modes
Welding current strength, A for electrodes with a diameter of, mm (in)
3.0 (1/8)4.0 (5/32)
90 – 120120 – 150

Welding Current: AC, DC+. Arc voltage of 23 – 27 V

Position of seams during welding
PA
PB
PC
PF
PE
PD
