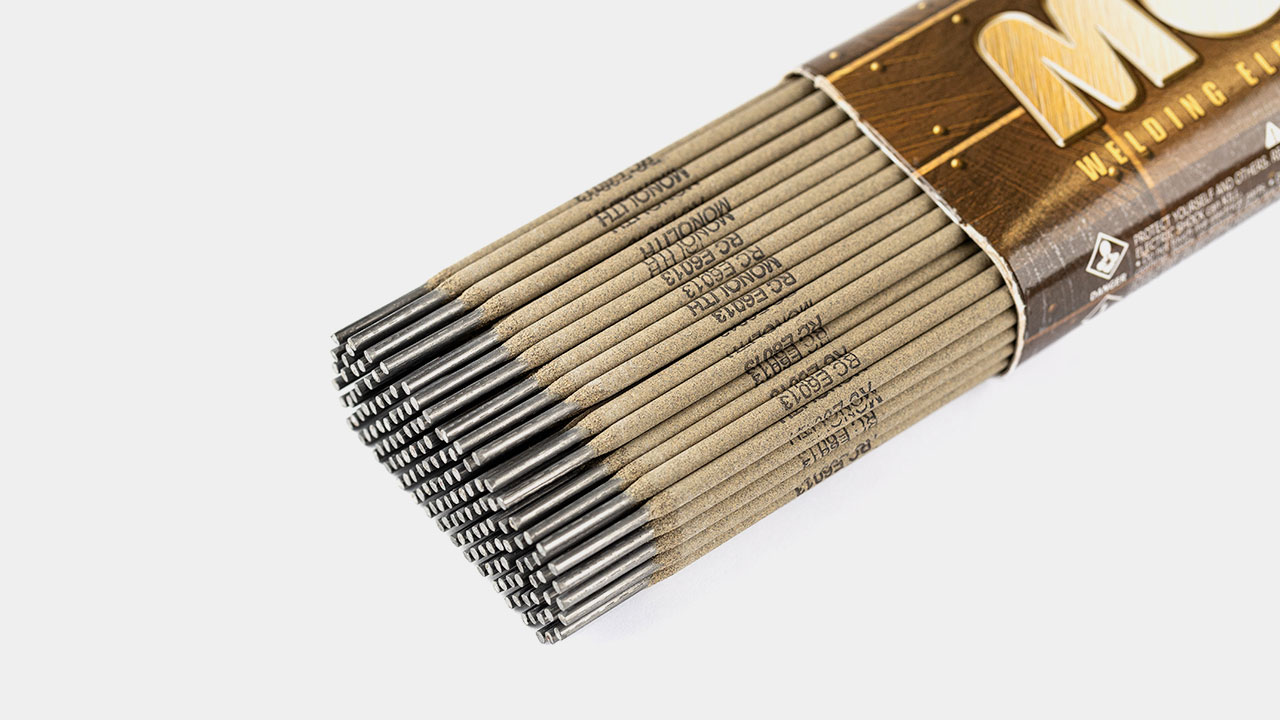

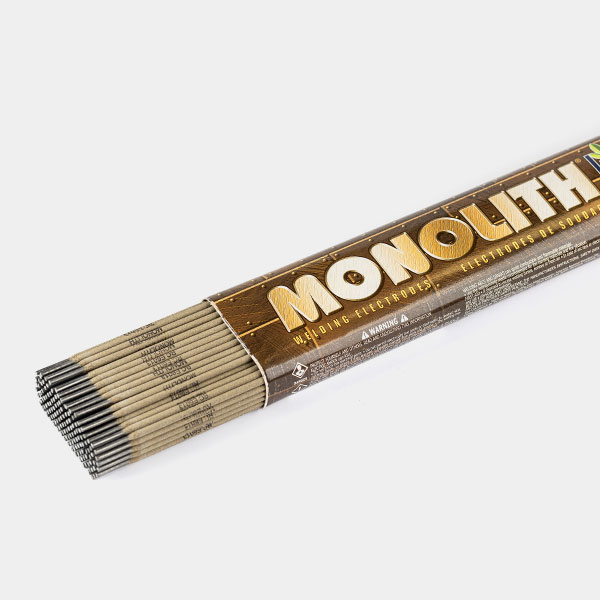

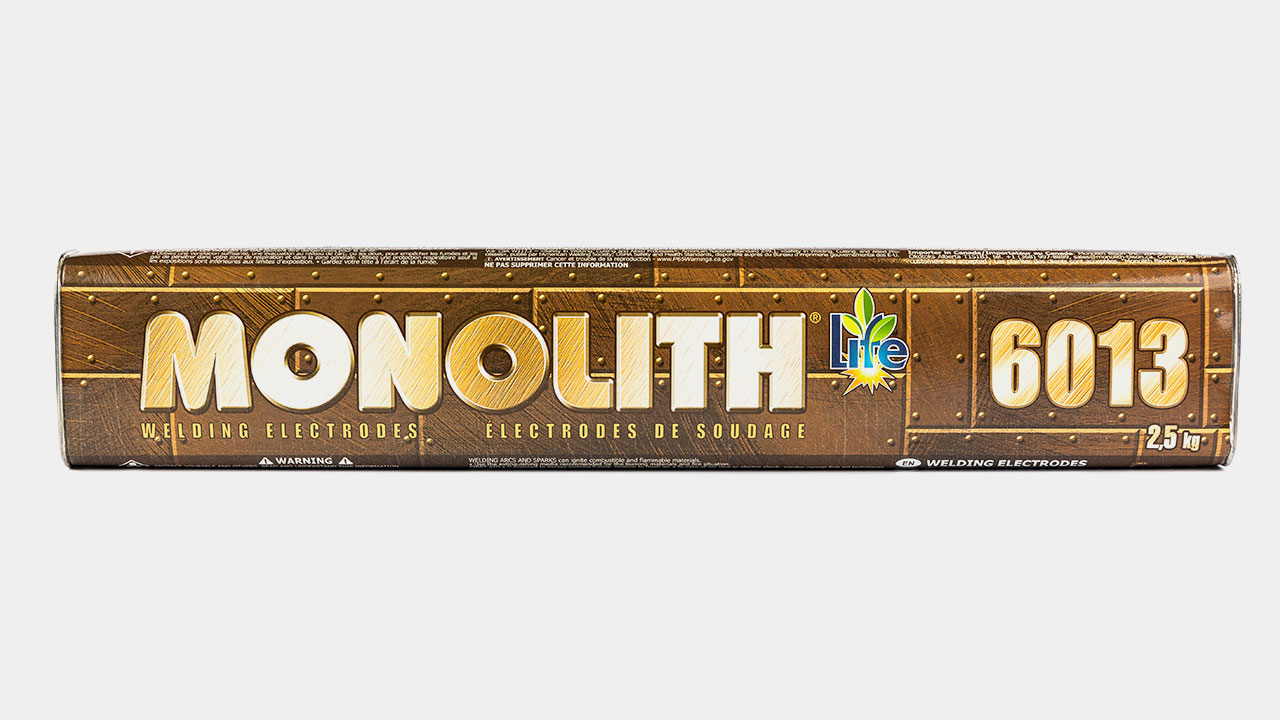

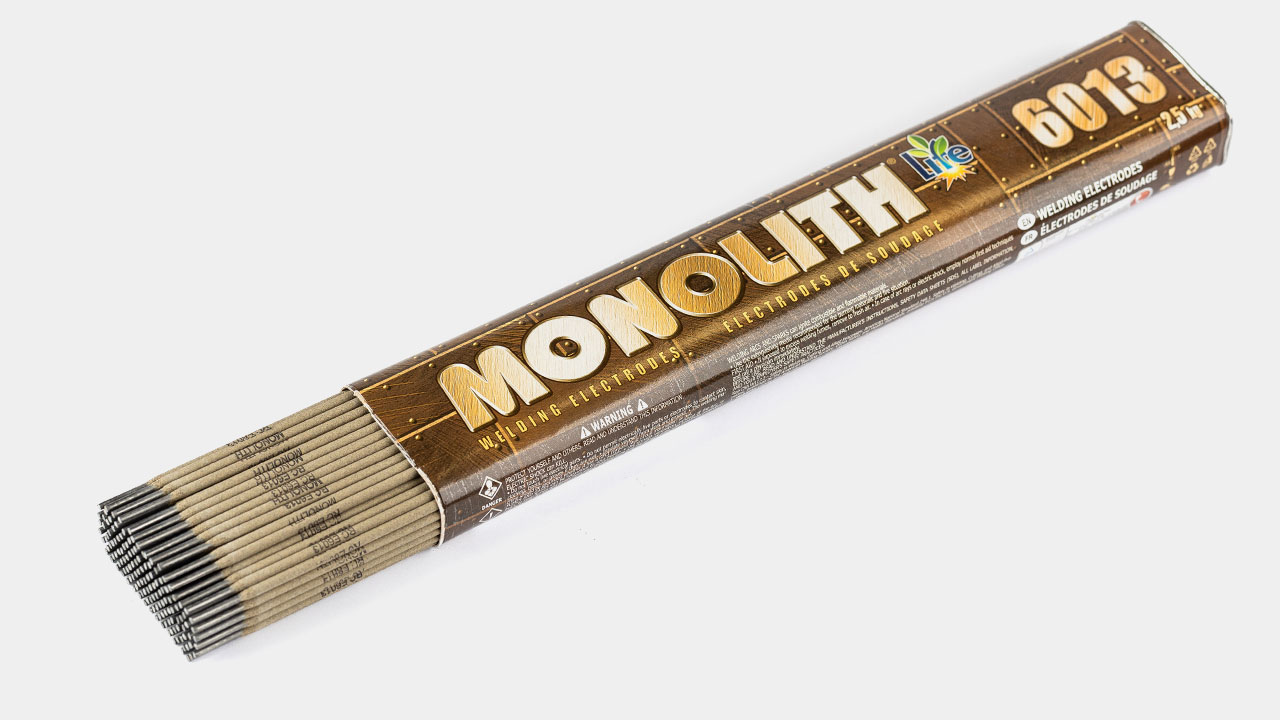

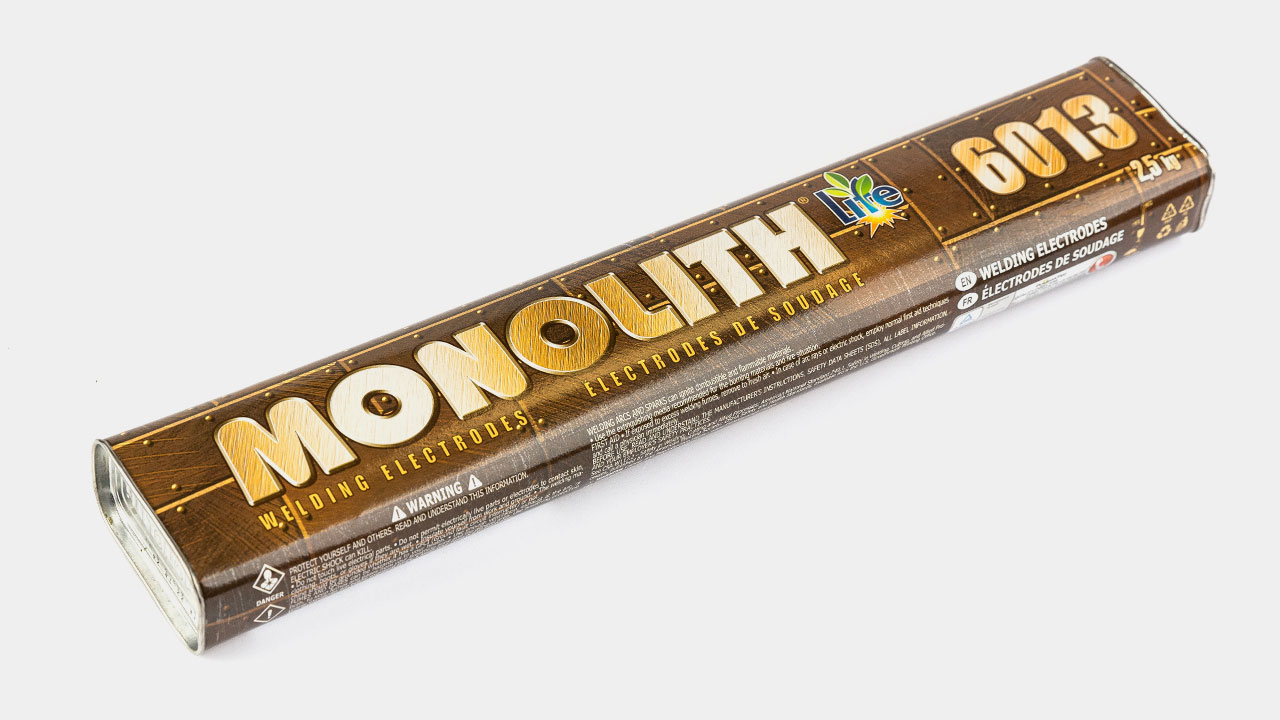

Welding electrodes Monolith RC 6013

AWS А5.1 / SFA-5.1: Е6013
CSA W48: E4313
EN ISO 2560-A-E 42 0 RC 1 1
Terms of use
  • designed for welding butt and corner joints of metal up to 20 (25/32) mm (in) thick in all spatial positions, except for vertical from top to bottom for electrodes with a diameter of 5.0 (3/16) mm (in)
  • insensitive to the quality of edge preparation, presence of rust and other contamination of the welded material surface
  • vertical joints are welded from top to bottom (with a diameter of 2 (5/64) – 4 (5/32) mm (in)) with a short arc or butting.
Special properties
  • excellent welding and technological properties provide easy initial and re-ignition of the arc, as well as soft and stable arc burning, reduced metal losses from splashing, uniform coating melting, excellent weld metal formation and easy separation of slag crust
  • excellent appearance and ease of operation in all positions.
The Monolith RC 6013 electrodes are specifically created for welding, whether using direct or alternating current, and are suitable for both standard and critical structural applications. They are an ideal option for general welding needs, offering a consistent and smooth arc on low open circuit voltage welding machines, requiring minimal operator expertise.
Packaging data
Diameter, mm (in)Length, mm (in)Number of electrodes in a pack, pcs.Weight of the pack, kg (lb)
2,5 (3/32)350 (13,8)135 – 1382,5 (5,5)
3,2 (1/8)350 (13,8)31 – 331 (2,2)
3,2 (1/8)350 (13,8)56 – 592,5 (5,5)
4,0 (5/32)450 (17,7)71 – 745 (11)
5,0 (3/16)450 (17,7)53 – 545 (11)
1 kg (2,2 lb) tube
20 tube per 20 kg (44 lb) cardboard box
50 cardboard boxes per 1 pallet
1000 kg (2200 lb) per 1 pallet
2.5 kg (5,5 lb) tube
8 tube per 20 kg (44 lb) cardboard box
50 cardboard boxes per 1 pallet
1000 kg (2200 lb) per 1 pallet
5 kg (11 lb) cardboard pack
4 cardboard packs per 20 kg (44 lb) bunch
50 bunches per 1 pallet
1000 kg (2200 lb) per 1 pallet



Coating type
rutile-cellulosic
CHEMICAL COMPOSITION OF DEPOSITED METAL, %
According to AWS A5.1 / Typical Results
C
Carbon
0.07 - 0.10
Mn
Manganese
0.40 - 0.45
Si
Silicon
0.25 - 0.40
P
Phosphorus
0.020 - 0.035
S
Sulfur
0.004 - 0.060
WEDGE METAL MECHANICAL PROPERTIES
According to AWS A5.1 / Typical Results
  • Tensile strength, MPa 450 - 530 (65 - 77)
  • Yield point, MPa 400 - 480 (58 - 70)
  • Relative elongation, % 20- 29
Baking before welding
  • permissible moisture content in the coating before use is not more than 0.9%
  • in case of wetting the electrode coating above the norm - dry for 60 minutes at 120±10 °C (248±50 °F)
Welding modes
Welding current strength, A for electrodes with a diameter of, mm (in)
2.5 (3/32)3.2 (1/8)4.0 (5/32)5.0 (3/16)
60 – 9090 – 120110 – 150150 – 210

Welding Current: AC, DC+. Arc voltage of 23 – 27 V

Position of seams during welding
PA
PB
PC
PF
PE
PD
