Welding electrodes Monolith CI-NiFe

AWS A5.15: E NiFe – CI
SFA-5.15: E NiFe-CI
ISO 1071: E C NiFe – CI 3
Terms of use
  • welding area must be cleaned
  • perform welding on cold or slightly preheated material
  • run beads only in the longitudinal direction without transverse oscillations of the electrode, in sections of not more than 50 (1.9) mm (in)
  • in case of multi-layer surfacing, cool in air layer by layer to a temperature of 60°C (140°F)
  • to improve mechanical properties, weld bead deposition is recommended to be followed by immediate hammering
Special properties
  • the electrode provides a stable arc and low spatter
  • deposited metal has high strength, resistance to hot cracks, therefore this electrode is suitable for repair welding of parts made of grey, forged and high-strength cast iron, as well as products working under high loads
Electrode with a nickel-iron core wire, designed for cold welding and surfacing of parts made of grey, wrought and high-strength cast iron, and dissimilar welding of cast iron to steels. Typical applications are repair of gear teeth, pump bodies, flanges and pulleys, heave machine sections.
Packaging data
Diameter, mm (in)Length, mm (in)Number of electrodes in a pack, pcs.Weight of the pack, kg (lb)
2,5 (3/32)300 (11,8)58 – 591 (2.2)
3,0 (1/8)350 (13,8)35 – 361 (2.2)
3,2 (1/8)350 (13,8)31 – 321 (2.2)
4,0 (5/32)350 (13,8)20 – 211 (2.2)

Mini-tube packaging of 3 pcs. is used for diameters 2.5 (3/32) mm (in) and 3.0/3.2 (1/8) mm (in) mini-tube packaging of 2 pcs. is used for diameter 4.0 (5/32) mm (in)

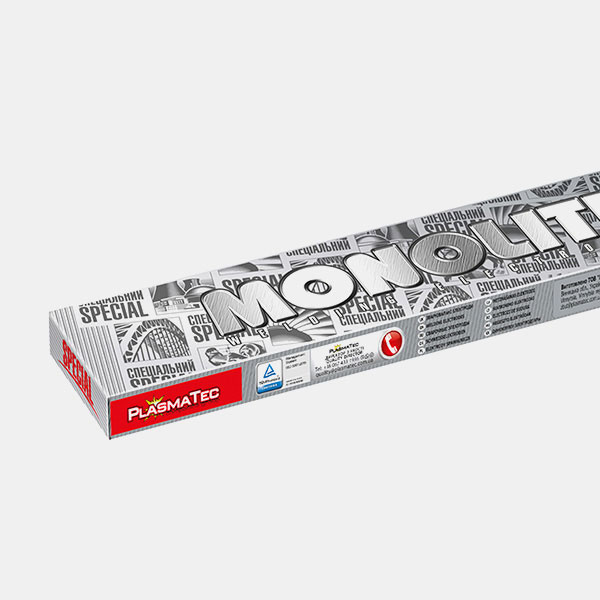

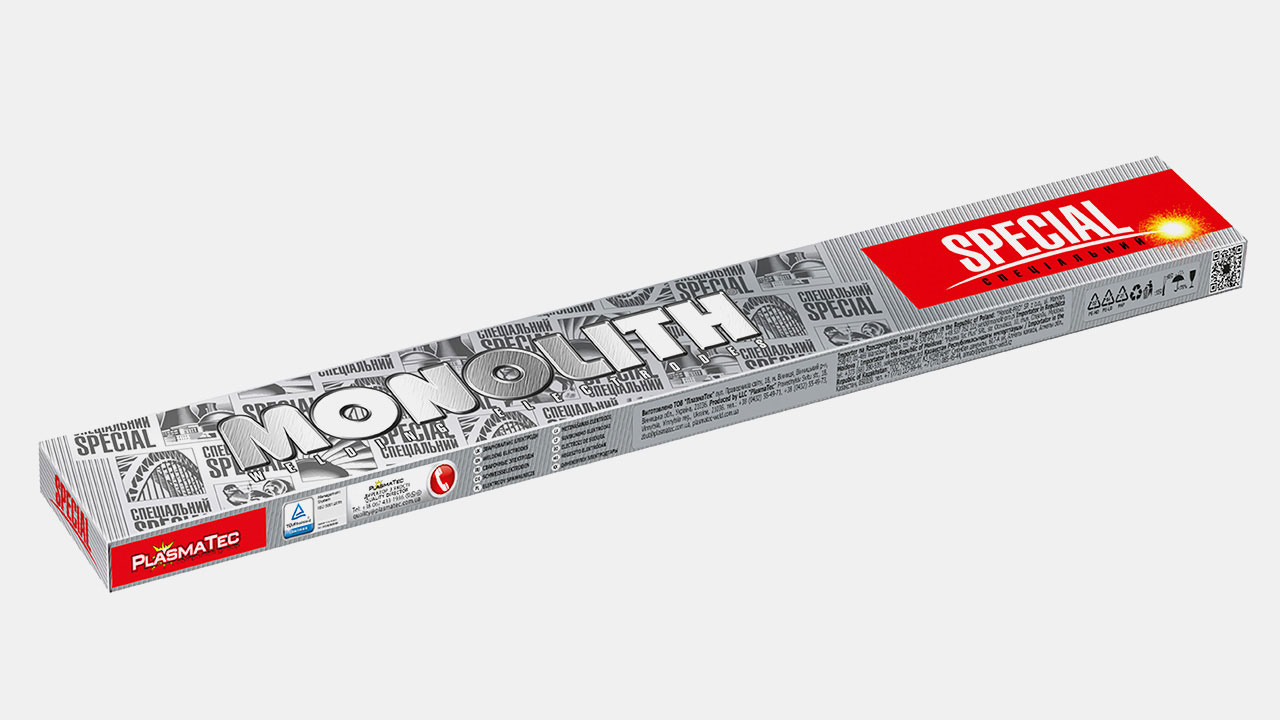

1 kg (2.2 lb) cardboard pack
20 packs per 20 kg (44 lb) cardboard box
50 cardboard boxes per 1 pallet
1000 kg (2200 lb) per 1 pallet
Coating type
graphite-basic
CHEMICAL COMPOSITION OF DEPOSITED METAL, %
According to AWS A5.1 / Typical Results
C
Carbon
1.4
Mn
Manganese
1.3
Si
Silicon
0.08
P
Phosphorus
not specified
S
Sulfur
0.024
Ni
Nickel
53.0
WEDGE METAL MECHANICAL PROPERTIES
According to AWS A5.1 / Typical Results
  • Tensile strength, MPa 502 (73)
  • Yield point, MPa 333 (48)
  • Relative elongation, % 18
Baking before welding
  • permissible moisture content in the coating before use is not more than 0.5%;
  • if the electrode coating is moistened above normal, redry at 250±10°С (482±50°F) for 60 minutes.
Welding modes
Welding current strength, A for electrodes with a diameter of, mm (in)
2.5 (3/32)3.0 (1/8)3.2 (1/8)4.0 (5/32)
50 – 8070 – 10080 – 11090 – 130

Welding Current: AC, DC+. Arc voltage of 23 – 27 V

Position of seams during welding
PA
PB
PC
PF
PE
PD
