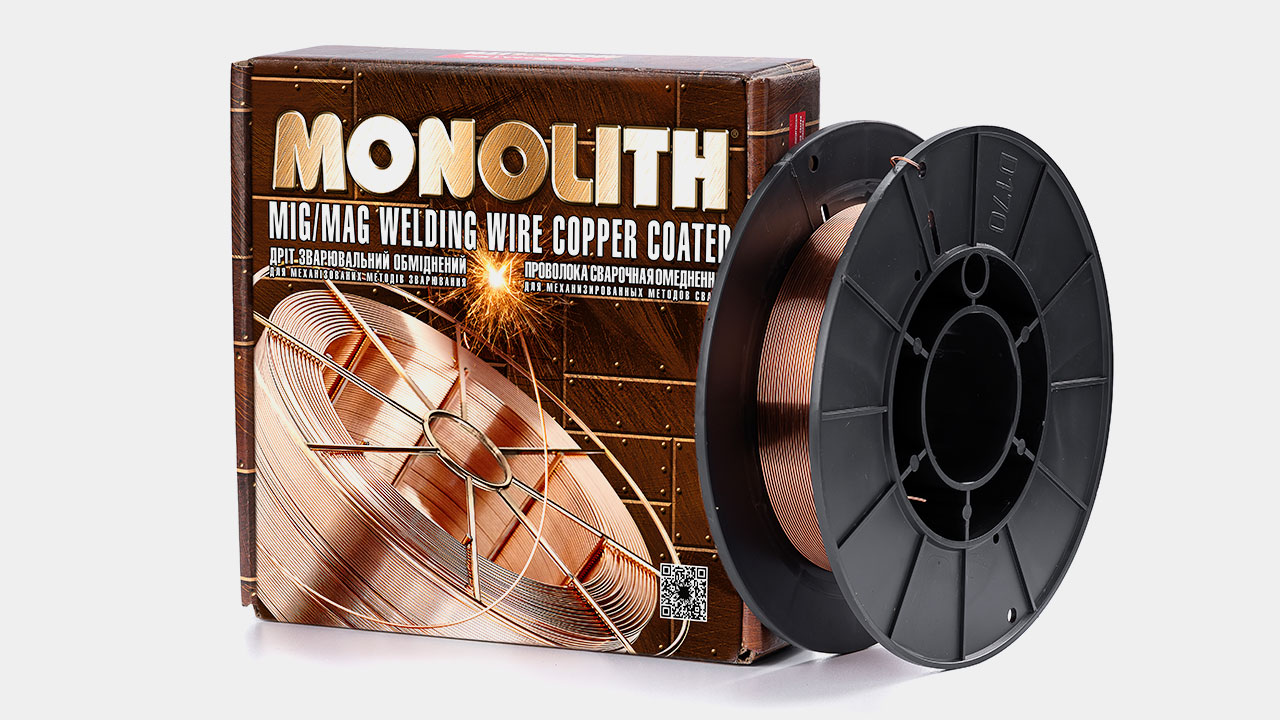

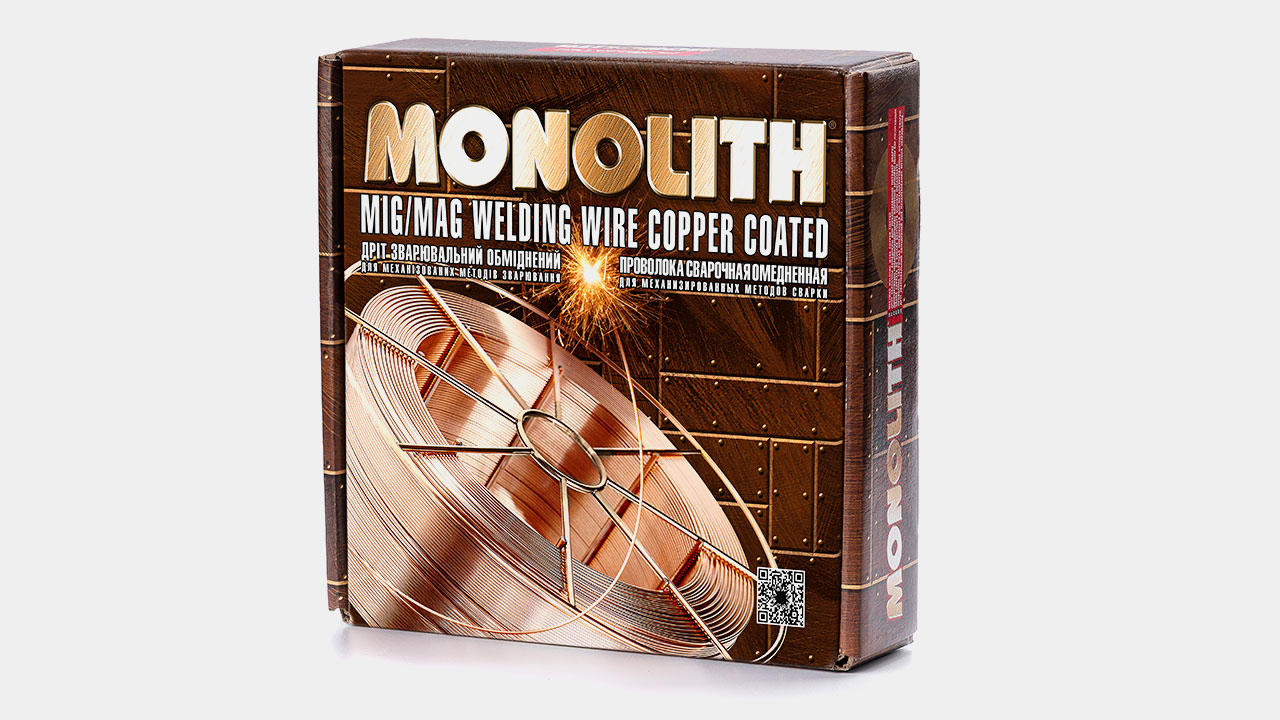

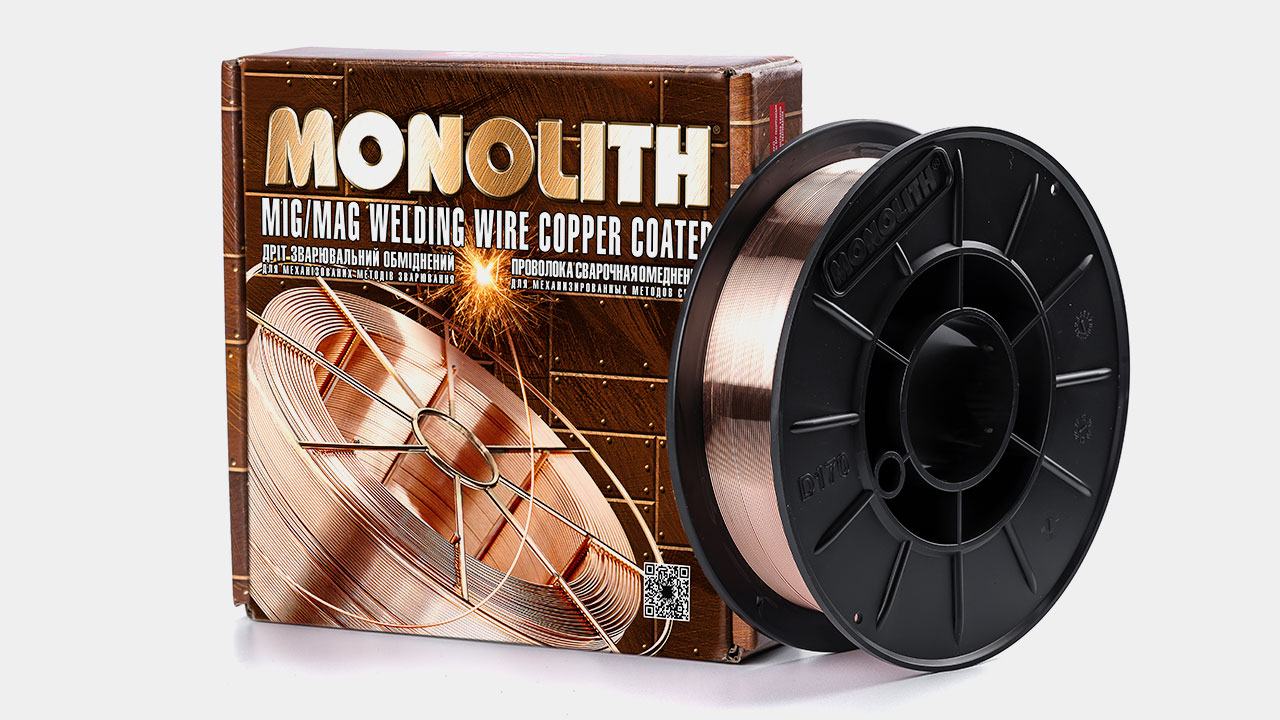

Welding wire Monolith ER70S-6

AWS A5.18: ER70S-6
CSA W48: B-G 49 A 3C 1 S6 (ER49S-6)
EN ISO 14341-A-G 42 4 M21 3Si1
Terms of use
  • the welding wire is used for welding (Surfacing) of products, parts and structures made of carbon and low-alloy steels in a flat, vertical and overhead positions
  • welding can be carried out both in gas mixtures and in pure CO,
  • * to obtain a high-quality joint scale, rust and various oxide coatings must be removed
  • « for multi-pass welding, the surface of the previous bead must be
    cleaned of slag.
Special properties
  • the wire undergoes plasma vacuum-arc treatment while being manufactured which ensures the cleanliness of the surface from non-metallic inclusions and the application of a high-quality copper coating, which improves the welding and technological properties of the wire
  • the use of Monolith ER70S-6 welding wire allows you to improve the quality of finished
    parts and products by forming a clean and reliable welded joint.
Copper-coated welding wire of Monolith ER70S-6 grade is designed for automatic and semi-automatic welding of carbon and low-alloy steels with a yield strength of 420 N/mm2. Welding wire is widely used for pipeline welding, in the shipbuilding industry, automotive and mechanical engineering, as well as in constructionTh.e wire is used for working with both thin sheet metal and multi-pass welding.
Packaging data
BS/KS 300 metal spoolD 270/D 300 plastic spoolD 200 plastic spoolD 170 plastic spoolD 100/K 100 plastic spool
  Ø 0.6 (.020'')Ø 0.6 (.020'')Ø 0.6 (.020'')
Ø 0.8 (.030'')Ø 0.8 (.030'')Ø 0.8 (.030'')Ø 0.8 (.030'')Ø 0.8 (.030'')
Ø 0.9 (.035'')Ø 0.9 (.035'')Ø 0.9 (.035'')Ø 0.9 (.035'')
Ø 1.0 (.040'')Ø 1.0 (.040'')Ø 1.0 (.040'')Ø 1.0 (.040'')
Ø 1.2 (.045'')Ø 1.2 (.045'')Ø 1.2 (.045'')
Ø 1.6 (1/16'')
Weight:Weight:Weight:Weight:Weight:
15 kg (33 lb)15 kg (33 lb)5 kg (11 lb)1 kg (2.2 lb)1 kg (2.2 lb)
18 kg (40 lb)18 kg (40 lb) 2.5 kg (5.5 lb)

Welding wire 0.8 mm (.030''), 1.0 mm (.040''), 1.2 mm (.045'') packed in 250 kg (551 lb) drums.



Coating type
copper-coated
CHEMICAL COMPOSITION OF DEPOSITED METAL, %
According to AWS A5.1 / Typical Results
C
Carbon
0.072
Mn
Manganese
1.61
Si
Silicon
0.95
P
Phosphorus
0.016
S
Sulfur
0.019
Cr
Chromium
0.031
Ni
Nickel
0.012
Mo
Molybdenum
0.002
V
Vanadium
0.002
Al
Aluminium
0.002
Ti+Zr
Titanium+Zirconium
0.001
Cu
Copper
0.017
WEDGE METAL MECHANICAL PROPERTIES
According to AWS A5.1 / Typical Results
  • Tensile strength, MPa 604 (87)
  • Yield point, MPa 472 (68)
  • Relative elongation, % 27
Welding modes
Diameter, mm (in)Current strength, AVoltage, VWire feed speed, m/hShielded gas consumption, l/min
0.6 (.020'')50 - 14013 - 21260 - 4006 - 8
0.8 (.030'')50 - 15013 - 21260 - 4006 - 8
0.9 (.035'')70 - 17516 - 22160 - 4008 - 10
1.0 (.040'') 70 - 20016 - 24160 - 4008 - 10
1.2 (.045'')90 - 35019 - 34150 - 4008 - 12
1.6 (1/16'') 140 - 37017 - 32100 - 35012 - 16

Welding should be carried out with direct current of reverse polarity

Position of seams during welding
PA
PB
PC
PF
PE
PD
