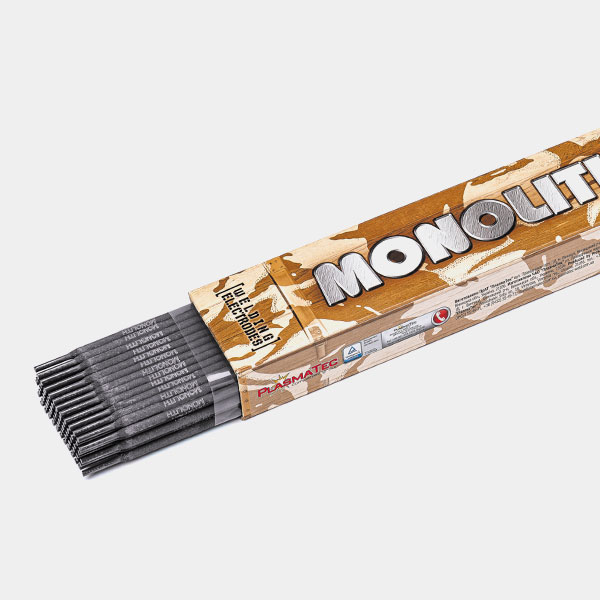

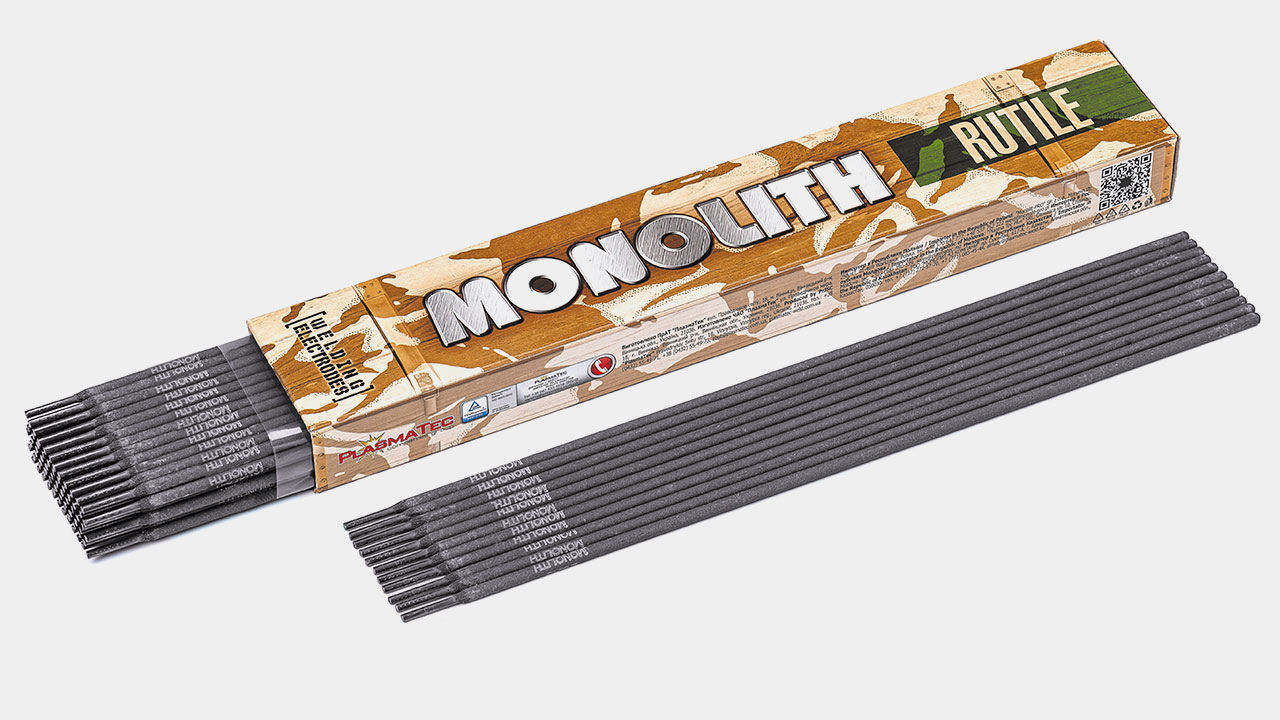

Welding electrodes Monolith 7014

AWS A5.1: E7014
CSA W48:E4914
EN ISO 2560-A-E 42 0 RR 3 2
Terms of use
  • welding on contaminated not machined at the edges metal;
  • all-position welding (except the vertical down) where fast travel speeds are important
Special properties
  • smooth, stable arc
  • for high-speed all-position welding
  • provide both excellent slag removal and bead appearance
  • suitable for use in farming due to humidity resistance
Electrodes with iron powder are designed for manual arc welding on higher welding currents. Electrodes are used for applications in construction equipment, metalware welding, welding of low-pressure pipes, automotive components, architectural welding, farm machinery welding, etc.
Package Weight
First select diameter
Packaging data
Diameter, mm (in)Length, mm (in)Number of electrodes in a pack, pcs.Weight of the pack, kg (lb)
2,5 (3/32)350 (13,8)78-792,5 (5,5)
3,0 (1/8)350 (13,8)31 – 321 (2,2)
4,0 (5/32)450 (17,7)15 – 161 (2,2)

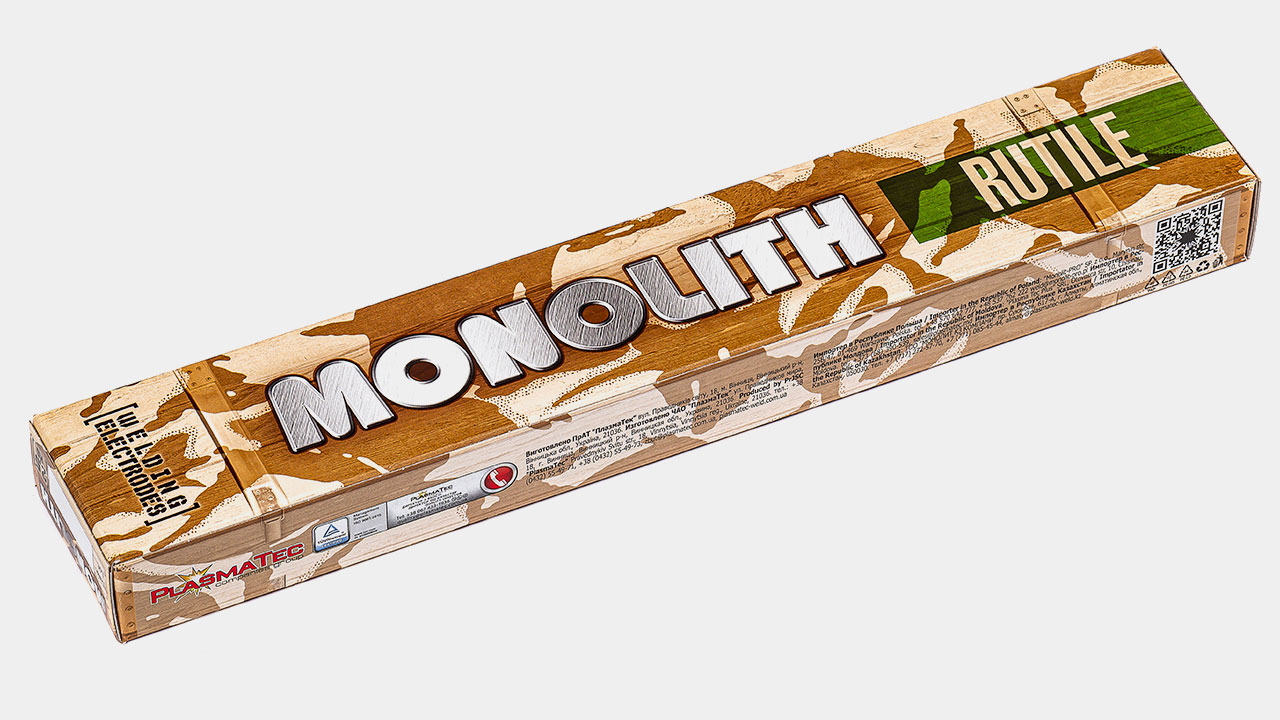

1 kg (2.2 lb) cardboard pack
20 packs per 20 kg (44 lb) cardboard box
50 cardboard boxes per 1 pallet
1000 kg (2200 lb) per 1 pallet
2.5 kg (5.5 lb) cardboard pack
6 packs per 15 kg (33 lb) bunch
67 bunches per 1 pallet
1005 kg (2211 lb) per 1 pallet
Coating type
rutile with iron powder
CHEMICAL COMPOSITION OF DEPOSITED METAL, %
According to AWS A5.1 / Typical Results
C
Carbon
0.11
Mn
Manganese
0.60
Si
Silicon
0.32
P
Phosphorus
0.025
S
Sulfur
0.009
Cr
Chromium
0.05
Ni
Nickel
0.03
Mo
Molybdenum
0.005
V
Vanadium
0.02
WEDGE METAL MECHANICAL PROPERTIES
According to AWS A5.1 / Typical Results
  • Tensile strength, MPa 540 (78)
  • Yield point, MPa 458 (66)
  • Relative elongation, % 20
Baking before welding
  • permissible moisture content in the coating before use is not more than 0.5%
  • in case of electrode coating wetting above the norm - dry for 60 minutes at 120±10 °C (248±50 °F)
Welding modes
Welding current strength, A for electrodes with a diameter of, mm (in)
2.5 (3/32)3.0 (1/8)4.0 (5/32)
70 – 11080 – 120110 – 170

Welding can be carried out with DC +-, AC (reverse with "+" on the electrode is recommended). Arc voltage of 70 V.

Position of seams during welding
PA
PB
PC
PF
PE
PD
