Welding electrodes Monolith 8018-B2

AWS A5.5: E8018-B2
CSA W48:E5518-B2
EN ISO 3580-A- E CrMoV1 B 2 2
Terms of use
  • designed for welding in all spatial positions except vertical down one.
Special properties
  • provide high resistance of the weld metal to pores formation during arc extension, allow welding with base metal edges inclination of at least 15%;
  • the welding seam is strong and resistant to scale formation;
  • high heat resistance;
  • provides uniform joints of almost all grades of heat-resistant steels;
  • deposited metal is not subject to the formation of hot cracks;
  • perform short-arc welding with prior cleaning of edges.
For manual DC arc welding of reverse polarity of boiler heating surfaces, as well as root welding, joint welding of heavy wall pipelines made of heat-re- sistant pearlitic steels operating at temperatures of up to 585˚С (1085˚F).
Package Weight
First select diameter
Packaging data
Diameter, mm (in)Length, mm (in)Number of electrodes in a pack, pcs.Weight of the pack, kg (lb)
2,5 (3/32)300 (11,8)110 – 1141 (2,2)

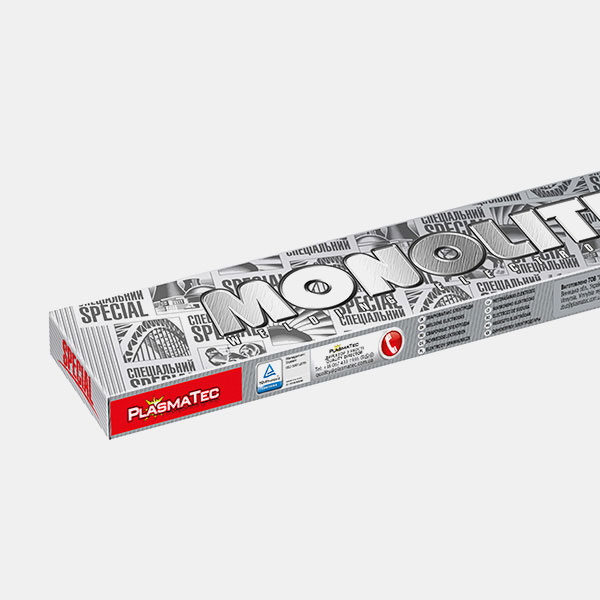

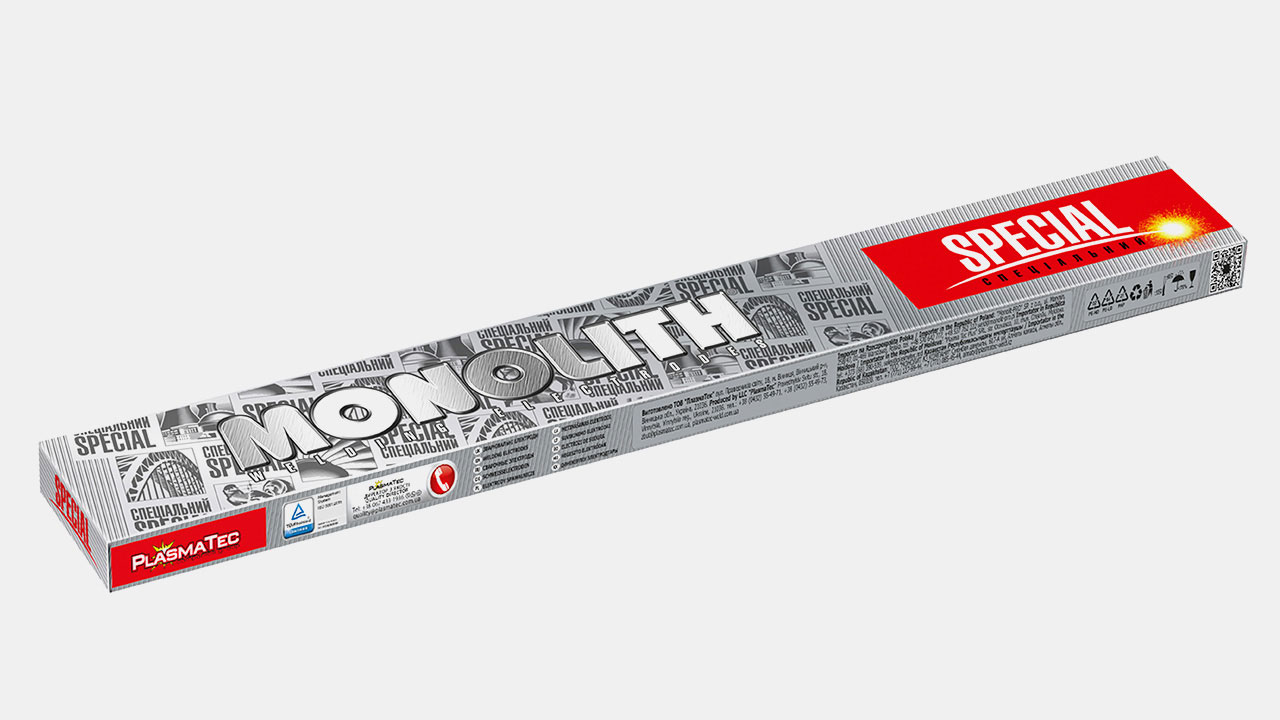

1 kg (2.2 lb) cardboard pack
20 packs per 20 kg (44 lb) cardboard box
50 cardboard boxes per 1 pallet
1000 kg (2200 lb) per 1 pallet
Package Weight
First select diameter
Coating type
basic
CHEMICAL COMPOSITION OF DEPOSITED METAL, %
According to AWS A5.1 / Typical Results
C
Carbon
0.10
Mn
Manganese
1.19
Si
Silicon
0.43
P
Phosphorus
0.028
S
Sulfur
0.007
Cr
Chromium
1.18
Mo
Molybdenum
1.24
V
Vanadium
0.23
WEDGE METAL MECHANICAL PROPERTIES
According to AWS A5.1 / Typical Results
  • Tensile strength, MPa 808 (117)
  • Yield point, MPa 762 (110)
  • Relative elongation, % 16
Baking before welding
  • permissible moisture content in the coating before use is not more than 0.4%;
  • in case of electrode coating wetting above the norm - dry for 60 minutes at 400±10 °С (752±50 °F).
Welding modes
Current, A
2.5 (3/32)
60 - 90

Welding Current: DC+. Arc voltage of 20 – 25 V

Position of seams during welding
PA
PB
PC
PF
PE
PD
Package Weight
First select diameter
Package Weight
First select diameter
Download Certificates
