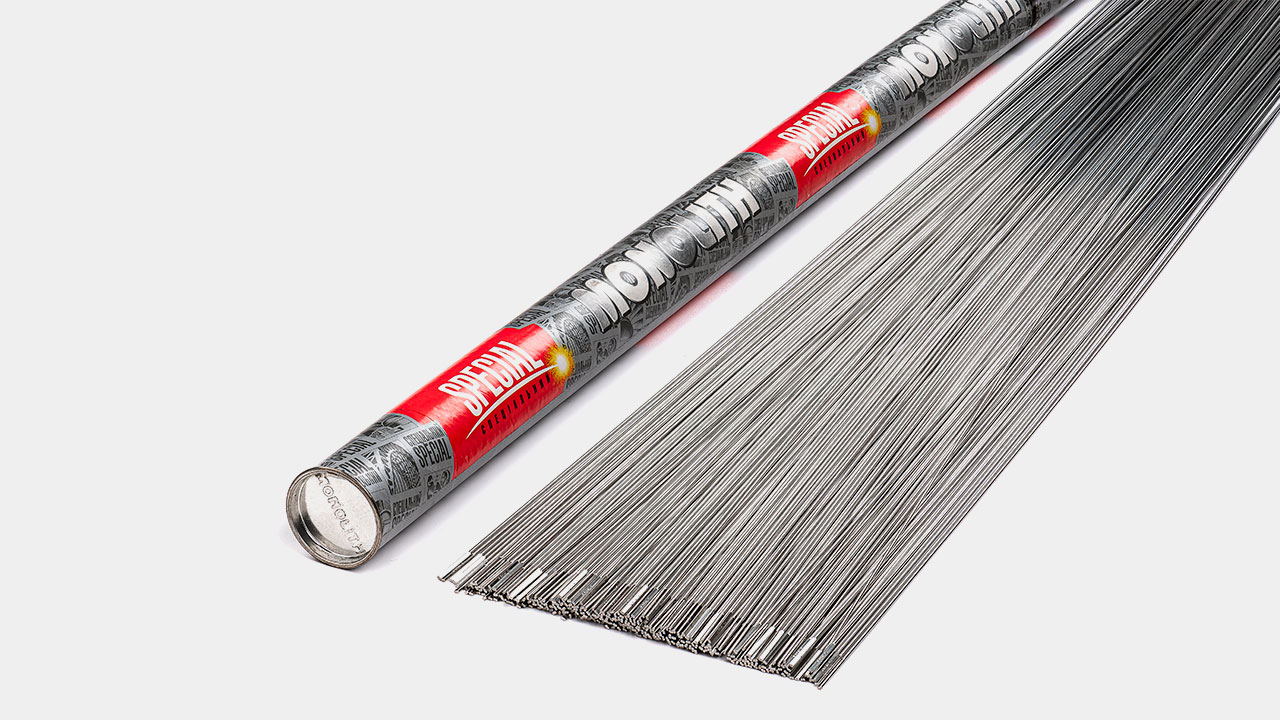

Stainless Welding Rods Monolith ER308L

AWS A5.9: ER308L
CSA W48: ER308L
EN ISO 14343-A-W-19 9 L
Terms of use
  • Welding is done with direct current, and argon is used as the shielding gas.
  • Not recommended for welding products exposed to environments with a high sulfur content.
Special properties
  • Resistance to cracking.
  • High cavitation resistance.
  • Thermal resistance.
  • Scale resistance at high temperatures up to 850°C (1562 F).
  • Ferrite content in the deposited metal after welding is ~4.5% (FN ~10).
Stainless welding rods Monolith ER308L have properties and applications similar to 308LSi, but are recommended in cases where a high silicon content is undesirable — for example, when there is a high risk of hot cracking during welding. They are used in mechanical engineering, oil, chemical, and food industries, for the manufacturing of pipelines, tanks, boilers, etc.
Package Weight
First select diameter
Packaging data

Diameter, mm (in)

Length, mm (in)

Weight, kg (lb)

1.6 (1/16)

1000 (39.37)

5 (11)

2.5 (3/32)

1000 (39.37)

5 (11)

3.2 (1/8)

1000 (39.37)

5 (11)

CHEMICAL COMPOSITION OF DEPOSITED METAL, %
According to AWS A5.1 / Typical Results
C
Carbon
0.024
Mn
Manganese
1.66
Si
Silicon
0.50
P
Phosphorus
0.027
S
Sulfur
0.016
Cr
Chromium
19.78
Ni
Nickel
9.53
Mo
Molybdenum
0.070
Cu
Copper
0.19
WEDGE METAL MECHANICAL PROPERTIES
According to AWS A5.1 / Typical Results
  • Tensile strength, MPa ≥520
  • Relative elongation, % ≥30
Welding modes

Diameter, mm (in)

Current (A)

1.6 (1/16)

80–120

2.5 (3/32)

130–160

3.2 (1/8)

160–200

Position of seams during welding
PA
PB
PC
PF
PE
PD
