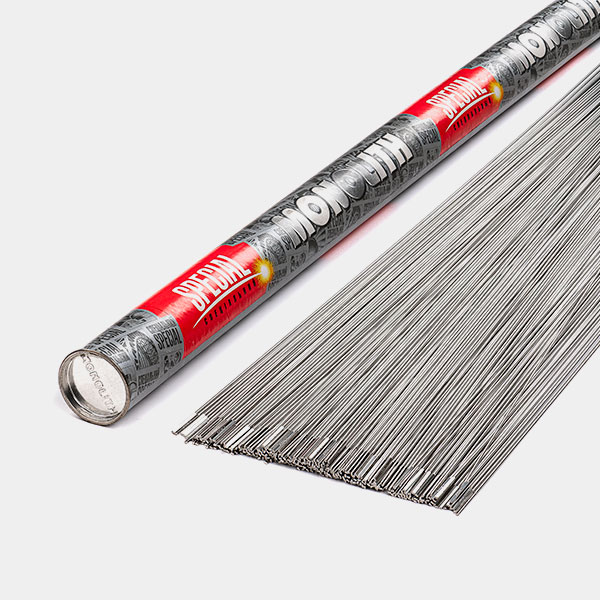

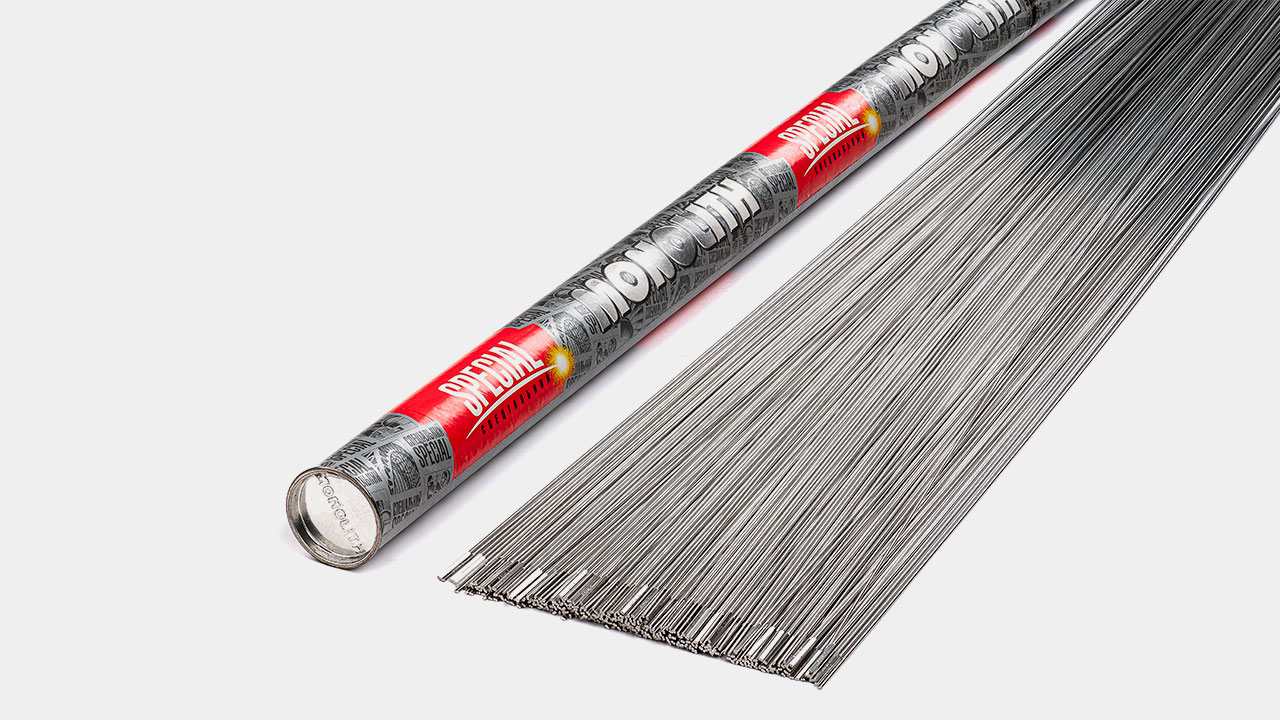

Stainless Welding Rods Monolith ER309L

AWS A5.9: ER309L
CSA W48: ER309L
EN ISO 14343-A-W-23 12 L
Terms of use
  • Welding is performed with direct current, using Argon as the shielding gas.
  • Operating temperature of welded joints up to 1000°C (1832 F).
Special properties
  • High corrosion resistance of deposited metal.
  • Low carbon content reduces the risk of intergranular corrosion.
  • Ferrite content in the deposited metal after welding is ~5.5% (FN ~9).
Stainless welding rods Monolith ER309L have properties and uses similar to 309LSi, but are recommended in cases where a high silicon content is undesirable. Widely used in the chemical, oil, and food industries for assembling pipelines, manufacturing various containers, etc., as well as in mechanical engineering.
Package Weight
First select diameter
Packaging data

Diameter, mm (in)

Length, mm (in)

Weight, kg (lb)

1.6 (1/16)

1000 (39.37)

5 (11)

2.5 (3/32)

1000 (39.37)

5 (11)

3.2 (1/8)

1000 (39.37)

5 (11)

CHEMICAL COMPOSITION OF DEPOSITED METAL, %
According to AWS A5.1 / Typical Results
C
Carbon
0.009
Mn
Manganese
1.86
Si
Silicon
0.35
P
Phosphorus
0.016
S
Sulfur
0.0009
Cr
Chromium
23.21
Ni
Nickel
13.95
Mo
Molybdenum
0.09
Cu
Copper
0.06
WEDGE METAL MECHANICAL PROPERTIES
According to AWS A5.1 / Typical Results
  • Tensile strength, MPa ≥520
  • Relative elongation, % ≥30
Welding modes

Diameter, mm (in)

Current (A)

1.6 (1/16)

80–120

2.5 (3/32)

130–160

3.2 (1/8)

160–200

Position of seams during welding
PA
PB
PC
PF
PE
PD
