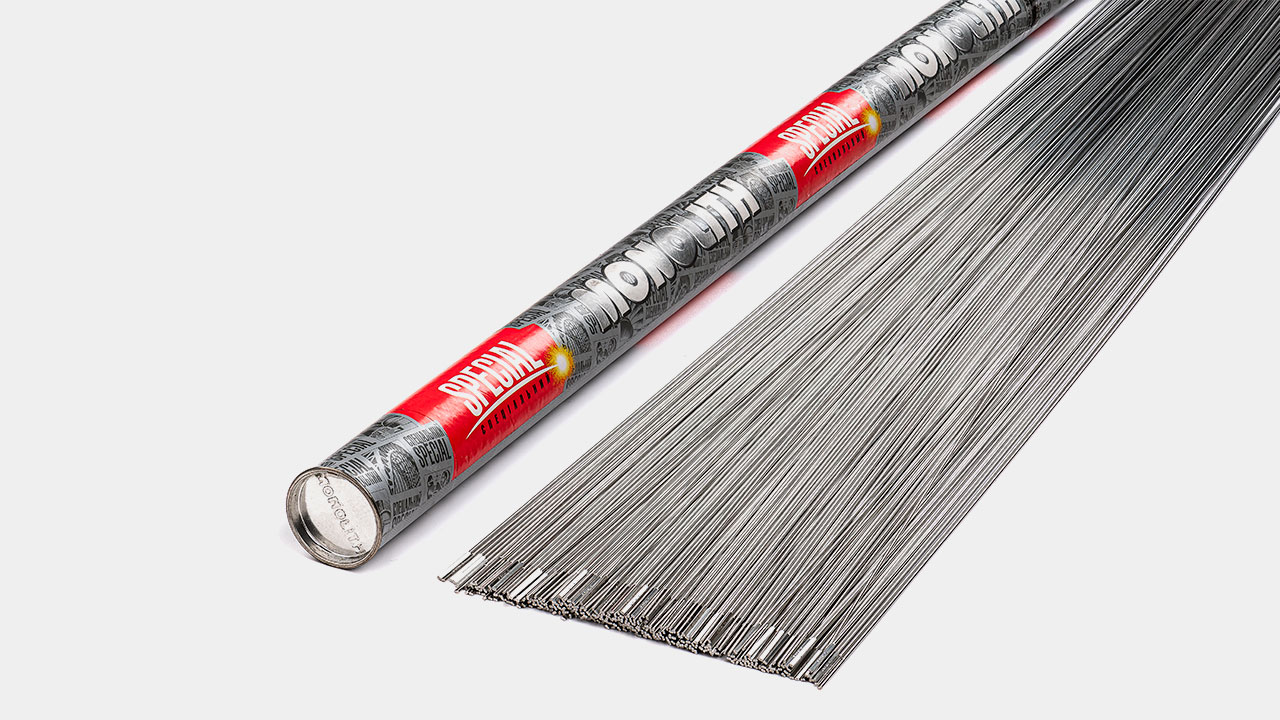

Stainless Welding Rods Monolith ER316L

EN ISO 14343-A-W 19 12 3 L
AWS A5.9: ER316L
CSA W48: ER316L
Terms of use

Can be used for welding chromium corrosion-resistant ferritic steels when:

  • The weld does not come into contact with sulfur-containing environments, and
  • Operating conditions do not require matching linear expansion coefficients between base and deposited metal.

Welding is carried out using direct current, with Argon as the shielding gas.


Special properties

Ferrite content in the deposited metal after welding is ~5.5% (FN ~7)

Stainless welding rods Monolith ER316L have properties and uses similar to 316LSi, but are recommended when high silicon content is undesirable. For example, when welding structures where there is an increased risk of hot cracking.
Package Weight
First select diameter
Packaging data

Diameter, mm (in)

Length, mm (in)

Weight, kg (lb)

1.6 (1/16)

1000 (39.37)

5 (11)

2.5 (3/32)

1000 (39.37)

5 (11)

3.2 (1/8)

1000 (39.37)

5 (11)

CHEMICAL COMPOSITION OF DEPOSITED METAL, %
According to AWS A5.1 / Typical Results
C
Carbon
0.015
Mn
Manganese
1.64
Si
Silicon
0.35
P
Phosphorus
0.024
S
Sulfur
0.0069
Cr
Chromium
18.66
Ni
Nickel
12.6
Mo
Molybdenum
2.52
Cu
Copper
0.13
WEDGE METAL MECHANICAL PROPERTIES
According to AWS A5.1 / Typical Results
  • Tensile strength, MPa ≥490
  • Relative elongation, % ≥30
Welding modes

Diameter, mm (in)

Current (A)

1.6 (1/16)

80–120

2.5 (3/32)

130–160

3.2 (1/8)

160–200

Position of seams during welding
PA
PB
PC
PF
PE
PD
